Architecture

Scroll

Precisely Connect CDC SQData provides a comprehensive data integration platform addressing multiple business needs, including continuous availability of critical applications, data warehouse propagation, detection and publishing of key business events, application integration, real-time business intelligence and legacy data migration.

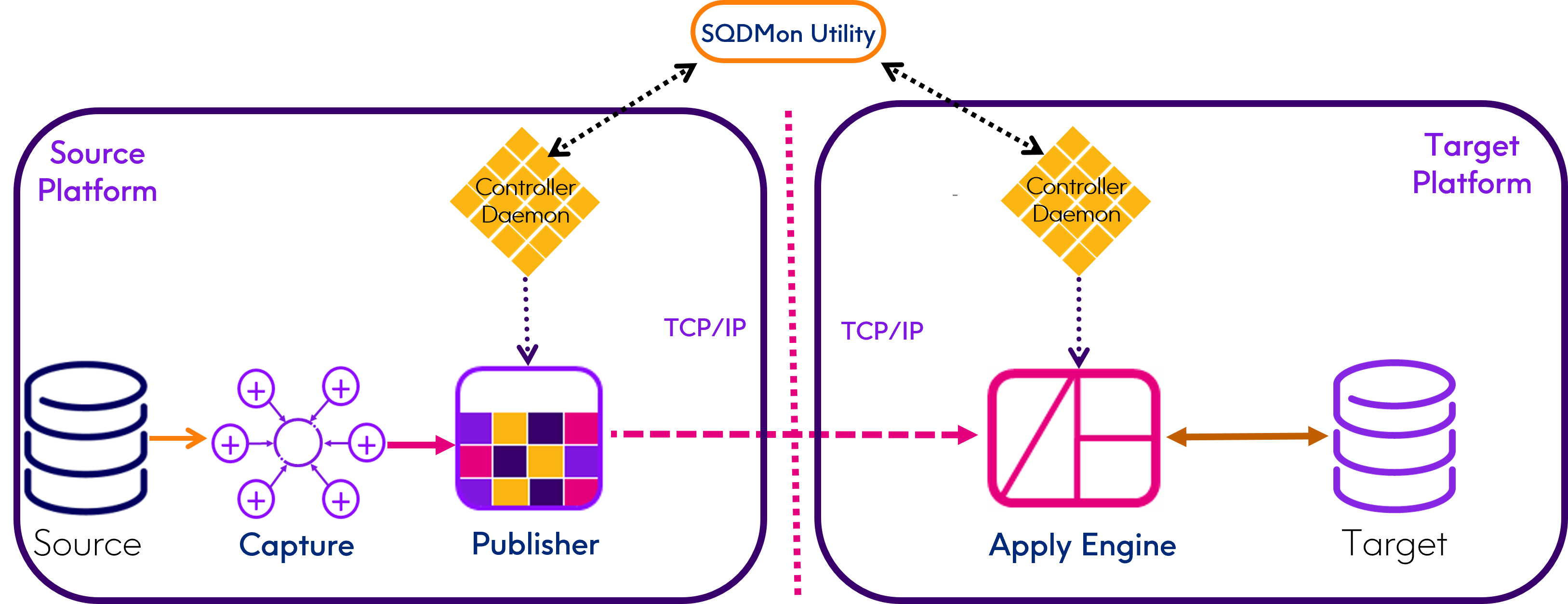

This versatility is accomplished with a relatively simple product architecture based on a Capture, Publish and Subscribe model

SQData Product ArchitectureAE

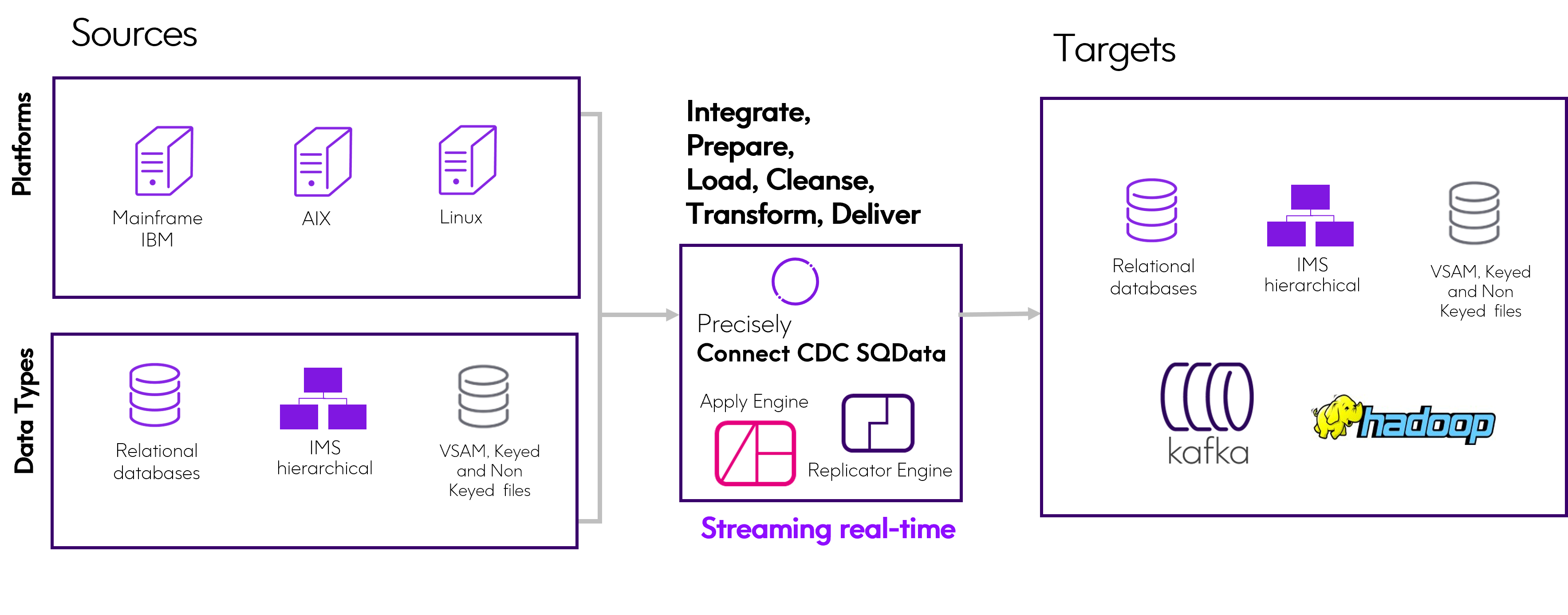

Connect CDC SQData supports all major operating system platforms and the databases and file systems available on those platforms; including IMS, Db2 and VSAM on z/OS considered by some to be "legacy" datastores.

SQData Product ArchitectureB

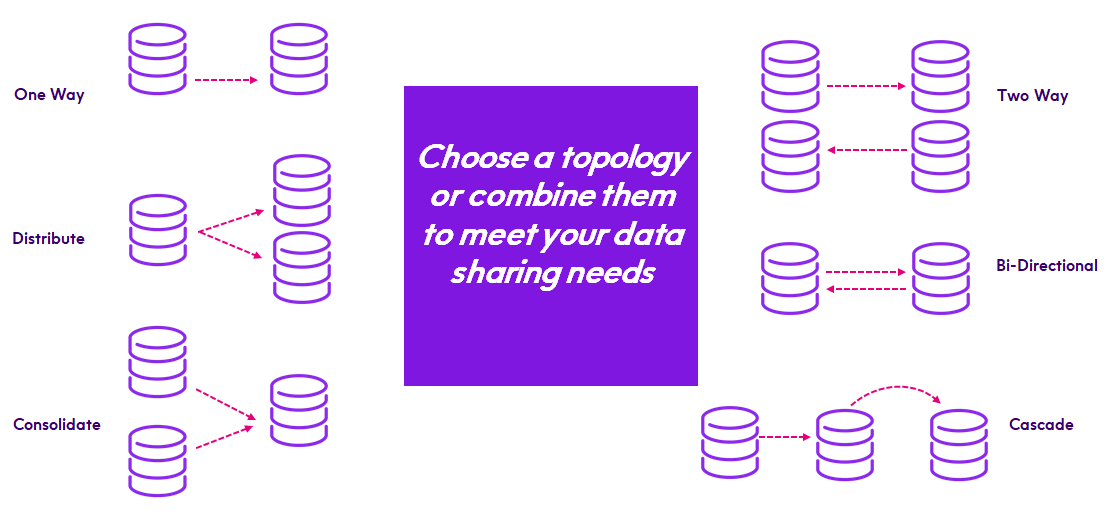

Multiple topologies, not only one way data flow, enable most all conceivable combinations of capture and apply.

SQData Product ArchitectureC

The following sections include:

Real world business use case solutions

Overview of configuration options on all supported platforms

Introduction to the individual product components.
